Solar PV Modules
50Wp to 730Wp MONO-PERC & TOPCon. 10-year product warranty · 25-year performance warranty.
Products · Solar Panels

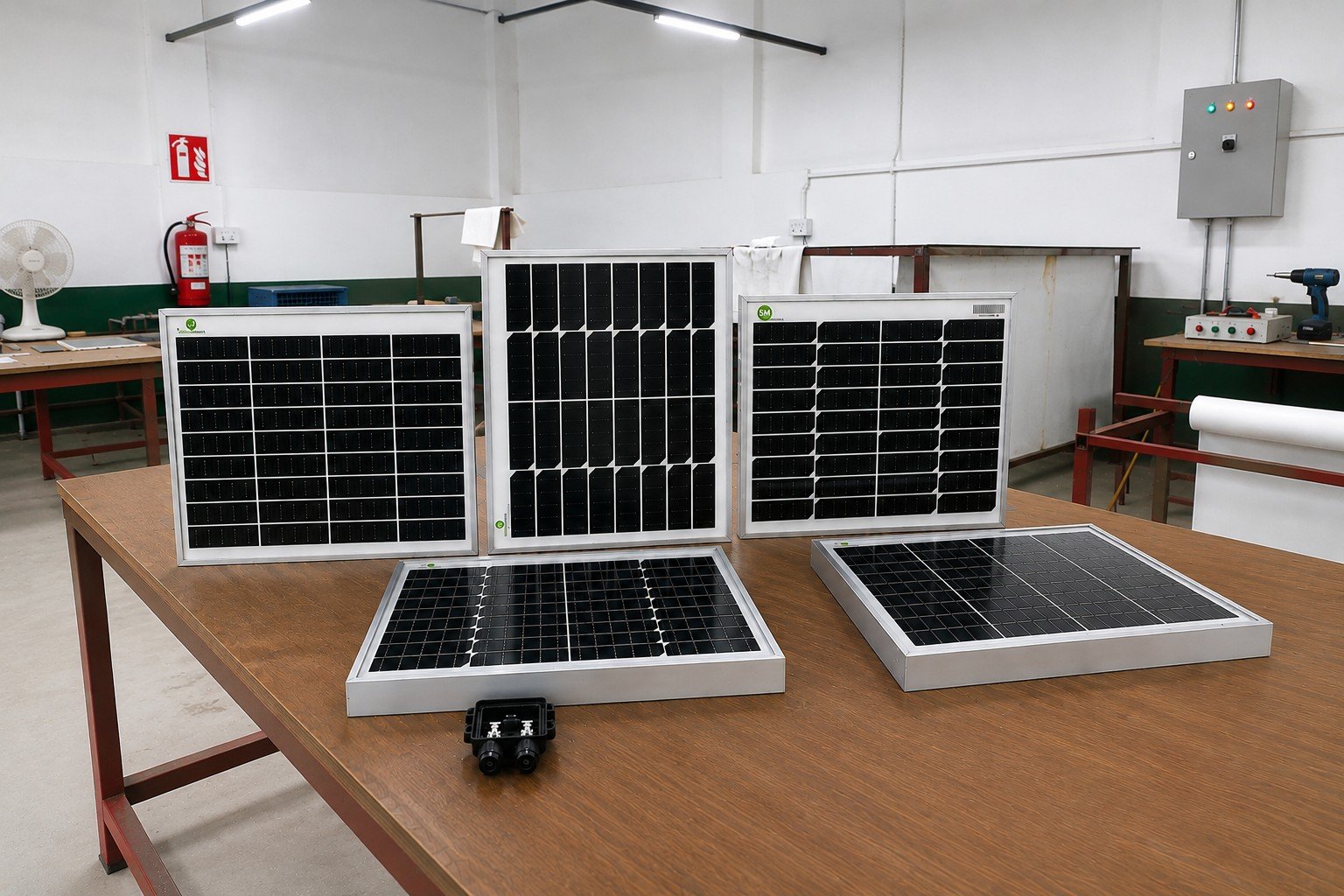

Mono PERC & TOPCon bifacial panels — manufactured in Bihar.
SMAtree is a Bihar-based manufacturing and EPC company for Mono PERC PV modules, solar water pumping, and on-grid / off-grid solutions for homes, farms, and industry.
Product lines
Built for every use case
Solar Water Pumping
1HP to 10HP AC/DC systems with VFD and dry-run protection for agricultural use.
Solar EPC Projects
Rooftop, ground mount, and industrial net-metering — design to commissioning.
Datasheet series
Electrical characteristics
STC: 1000 W/m² irradiance, 25°C cell temperature, AM 1.5G spectrum. Mono PERC M10 cells.
| Parameter | 40Wp | 50Wp | 60Wp | 80Wp | 100Wp | 125Wp | 150Wp |
|---|---|---|---|---|---|---|---|
| Peak Power, Pmax (Wp) | 40 | 50 | 60 | 80 | 100 | 125 | 150 |
| Open Circuit Voltage, Voc (V) | 21.95 | 21.95 | 21.95 | 21.95 | 22.64 | 22.64 | 22.64 |
| Short Circuit Current, Isc (A) | 2.27 | 2.86 | 3.30 | 4.47 | 5.35 | 6.67 | 8.22 |
| Voltage at Pmax, Vmp (V) | 19.23 | 19.23 | 19.23 | 19.23 | 19.83 | 19.83 | 19.83 |
| Current at Pmax, Imp (A) | 2.15 | 2.70 | 3.12 | 4.23 | 5.06 | 6.31 | 7.77 |
| Max System Voltage (Vdc) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Maximum Efficiency (%) | 18.60 | 18.85 | 18.63 | 19.18 | 19.62 | 19.43 | 19.78 |
Mechanical characteristics
| Specification | 40Wp | 50Wp | 60Wp | 80Wp | 100Wp | 125Wp | 150Wp |
|---|---|---|---|---|---|---|---|
| Dimensions L×W×D (mm) | 660×410×30 | 660×410×30 | 700×410×30 | 785×570×30 | 756×660×30 | 788×760×30 | 850×760×30 |
| Mounting Pitch L (mm) | 400 | 400 | 400 | 400 | 600 | 600 | 600 |
| Mounting Pitch W (mm) | 383 | 383 | 383 | 383 | 557 | 557 | 557 |
| Weight (Kg) | 2.6 | 3.35 | 4.0 | 4.5 | 5.4 | 7.0 | 8.8 |
| Cells Per Module | 36 | 36 | 36 | 36 | 36 | 36 | 36 |
Module construction
- Cell type: Mono PERC M10
- Front cover: tempered low-iron glass, 3.2 mm
- Encapsulant: EVA
- Frame: anodized aluminium alloy
- Junction box: IP67 · 2 bypass diodes
Temperature ratings
- α (current): 0.07%/K
- β (voltage): −0.36%/K
- γ (power): −0.38%/K
- NOCT: 45°C ±2°C
- Operating range: −40°C to +85°C
- Max power tolerance: 2%
Warranty
- 10-year product warranty
- 25-year performance warranty
- ≤10% degradation in first 10 years
- ≥80% output remaining at year 25
- IEC · MSME · Startup India
Solutions
Clean energy for every scale
Residential Solar
Power your home with clean energy and enjoy energy freedom.
Commercial Solar
Smart energy solutions to reduce operational costs.
Industrial Solar
Scalable systems for maximum efficiency and impact.
Why choose SMAtree?
- ✓ Bihar-based manufacturing for faster delivery
- ✓ BIS & ISO certified modules
- ✓ End-to-end subsidy support for farmers (PM-KUSUM)
- ✓ Transparent pricing & timely installation
- ✓ 24×7 service team & long-term performance guarantee
Our services
- ✓ System design & engineering
- ✓ Installation & commissioning
- ✓ Government subsidy assistance
- ✓ PM-KUSUM / MNRE support
- ✓ AMC & after-sales support
